Amorphous Alloy Transformer SCB(H)15-30~2500/10/0.4

Home > Products > Amorphous Alloy Transformer > SCBH15 Transformer > Amorphous Alloy Transformer SCB(H)15-30~2500/10/0.4

Amorphous Alloy Transformer SCB(H)15-30~2500/10/0.4

  • Brand Hengda
  • Model No. Amorphous Alloy Transformer SCB(H)15-30~2500/10/0.4
  • Phase 3 Phases
  • Vector Group/Connection Type Yyn0 or Dyn11
  • Tap Ranger ±5% or ±2*2.5%
  • Frequency 50HZ/60HZ
  • Coil Material Copper/Aluminum
Get Free Quote

Description

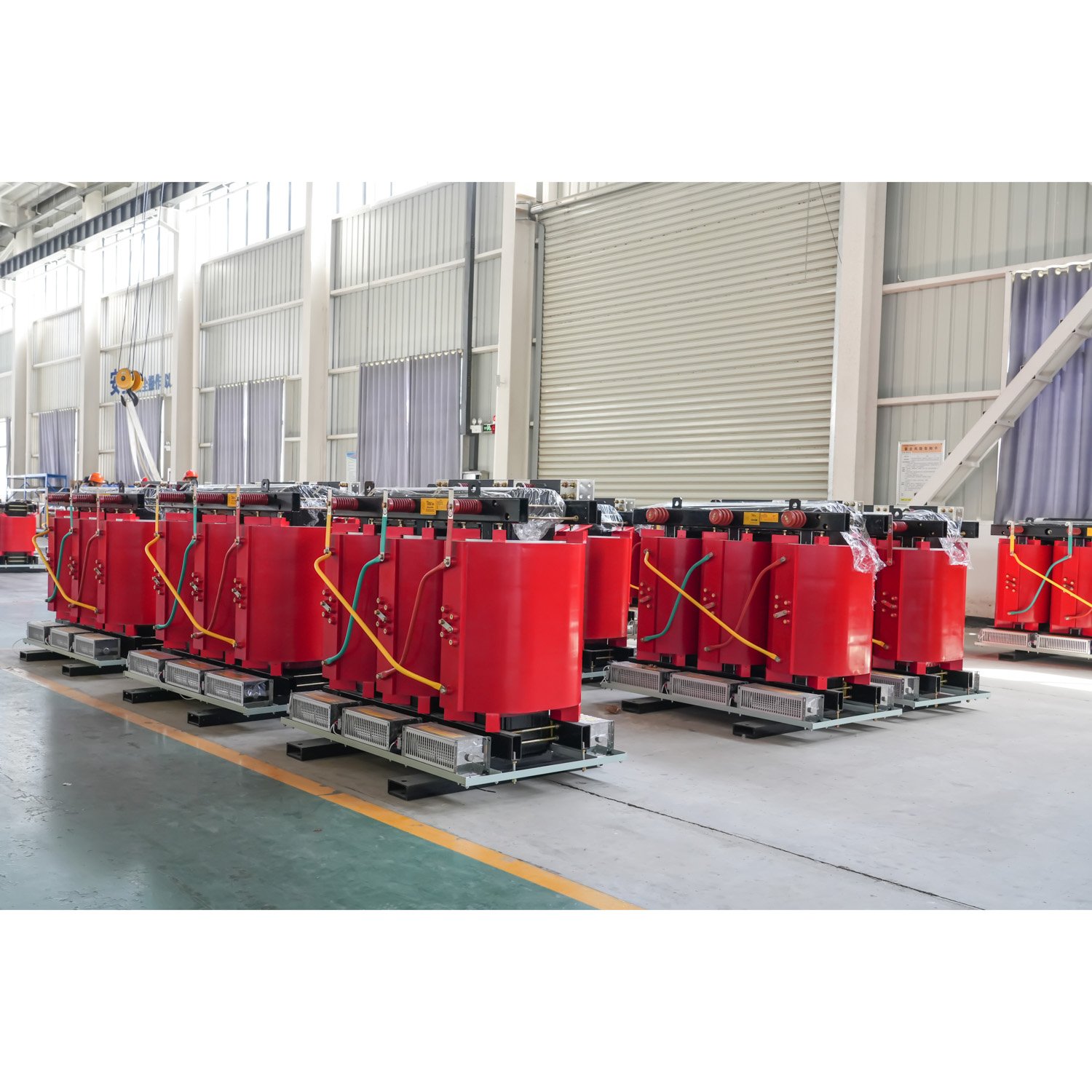

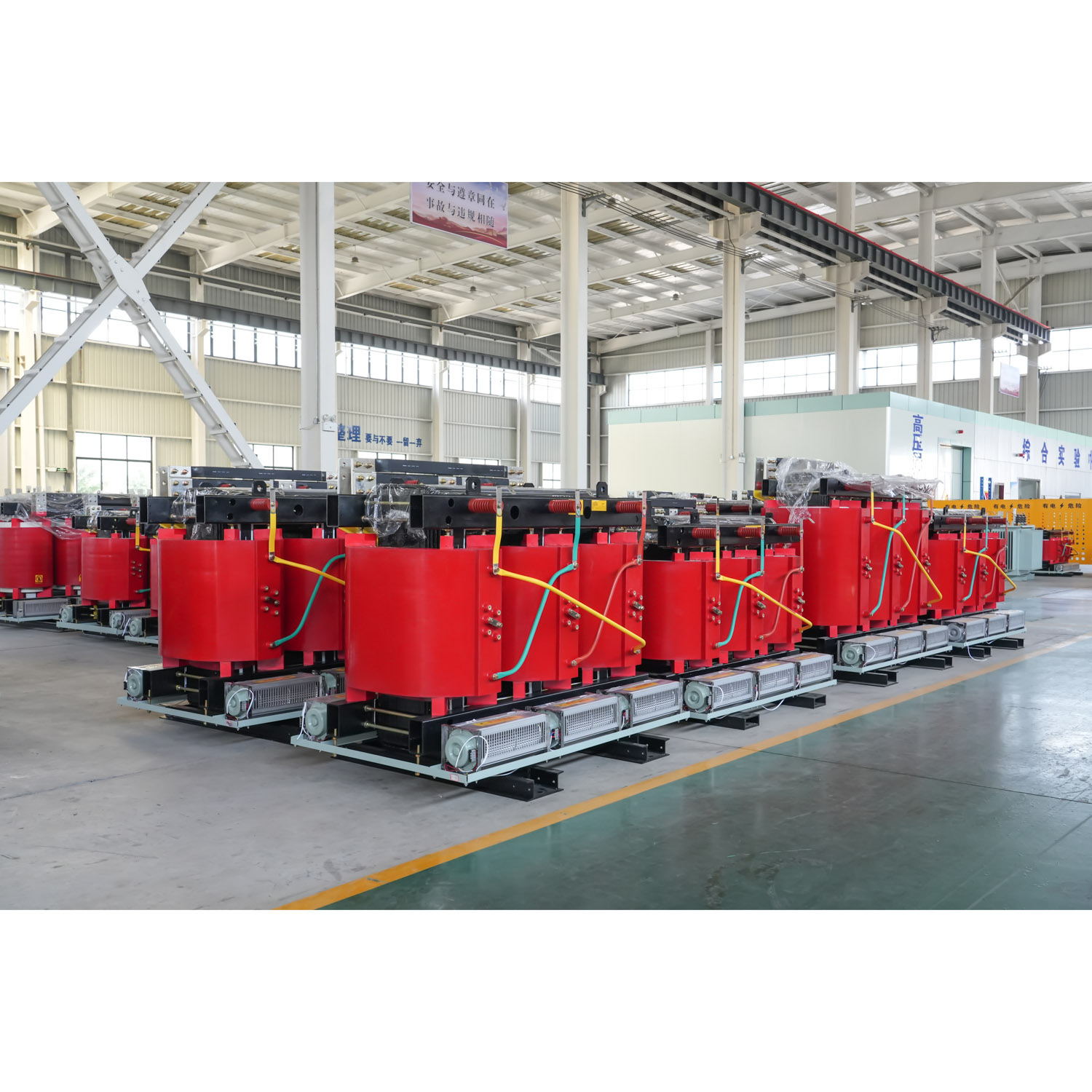

SCBH15 Amorphous alloy transformer is a low-loss and high-efficiency power transformer with iron-based amorphous metal as the iron core. It is an ideal low-loss energy-saving transformer at present with low temperature rise and stable running performance. A large number of this product into the network operation can achieve good energy-saving effect and can reduce the pollution of the atmosphere, especially suitable for the lack of computers and load fluctuations and difficult to carry out routine maintenance of the region.

SC(B)11-10kV Technical Specifications

Rated Power
(kVA)		 Voltage Combination Vector Group/
Connection Method		 No-Load Loss Load Loss (120°C） Short-circuit Impedance No-load Current
H.V(kV) H.V. Tap Range(%) L.V(kV) W W % %
100 6
6.3
10
10.5
11		 ±5%
or±2*2.5%		 0.4 Dyn11 130 1570   1.2
125 150 1850 1.1
160 170 2130 1.1
200 200 2530 1
250 230 2760 1
315 280 3470 0.9
400 310 3990 0.8
500 360 4880 0.8
630 410 5960 6 0.7
800 480 6960 0.7
1000 550 8130 0.6
1250 650 9690 0.6
1600 760 11730 0.6
2000 1000 14450 0.5
2500 1200 17170 0.5
Operating Condition: 1.Altitude not exceeding 1000 meters
2.Maximum ambient temperature +40°C
3.Maximum daily average temperature +30°C
4.Maximum annual average temperature +20°C
5.Maximum low temperature-25°C
6.Transformers for operation under special conditions are available upon request.



Scope of application:

SCBH15 series amorphous alloy dry-type transformer can be used in high-rise buildings, commercial centre, subways, airports, stations, industrial and mining enterprises and power plants, especially suitable for flammable and explosive and fire prevention requirements of high places. Therefore, amorphous alloy dry-type transformer is the most ideal energy-saving power distribution equipment in indoor power supply network.

Features:

  1. Amorphous alloy dry-type transformer biggest feature: no-load loss is one-third of the ordinary silicon steel sheet, energy saving effect is remarkable, the product reaches the national level energy efficiency standards.
  2. Safety, flame retardant and fireproof, can be installed directly in the load centre.
  3. Maintenance-free, easy to install, low comprehensive operating costs.
  4. Good moisture-proof performance, can operate normally under 100 per cent humidity, and can be put into operation without drying after shutdown.
  5. Low loss, low noise, strong heat dissipation ability.

For other specifications, voltage, capacity, customized requirements and more details, please kindly send us an email!!!
